Waveform visualization

You can show additional context in the player (sound intensity, user attention, etc.) using the data visualization plugin. The graph will be displayed above the timeline:

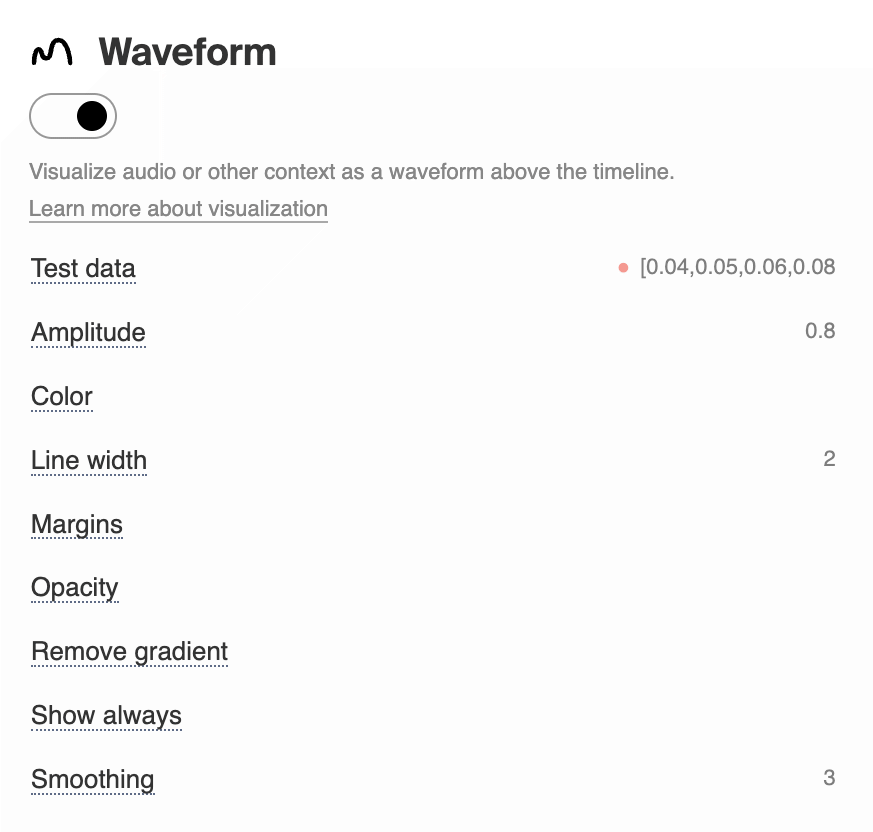

Enable the Waveform plugin

Specify the data in the Test data field -‒ an array of values ​​from 0 to 1 that will capture the context on the timeline. The player will evenly place the points along the timeline, smooth it and draw a graph. More points ‒ more complex graph will be displayed. Working data can be passed in the player code or in the playlist using the waveform parameter

waveform:[0.04,0.05,0.06,0.08,0.07,0.06,0.05,0.06,0.08,0.12,0.18,0.24,0.30,0.36,0.29,0.22,0.18,0.15,0.13,0.12,0.11,0.10,0.12,0.16,0.23,0.34,0.48,0.60,0.52,0.40,0.31,0.25,0.21,0.19,0.18,0.17,0.16,0.18,0.22,0.30,0.42,0.58,0.72,0.65,0.51,0.39,0.31,0.26,0.22,0.20,0.19,0.21,0.28,0.40,0.55,0.74,0.88,0.80,0.63,0.48,0.36,0.28,0.24,0.22,0.20,0.19,0.21,0.27,0.38,0.54,0.73,0.90,1.00,0.86,0.67,0.50,0.37,0.29,0.24,0.21,0.19,0.18,0.17,0.19,0.25,0.36,0.50,0.66,0.58,0.44,0.33,0.26,0.22,0.19,0.17,0.15,0.14,0.13,0.12,0.11]

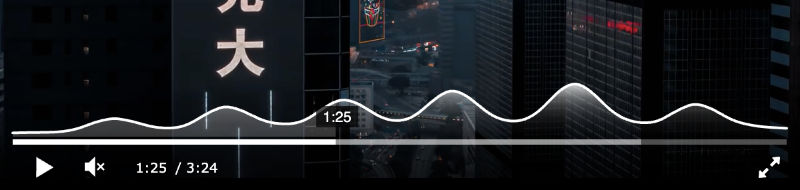

By default, the graph will appear when you hover the cursor over the rewind line or when tapped on mobile devices. In the settings you can enable constant display, change colors, smoothing etc. Example from the skins library:

You can see how this works using video and audio templates as an example.

Where to get data

Data for audio visualization can be obtained from files using the ffmpeg utility. You can download this php script that processes mp3 and produces an array of a given number of points. To visualize user attention data on the playback depth is needed. You can collect it via JS API.

---
